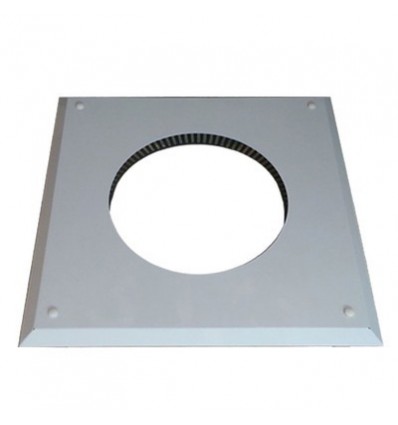

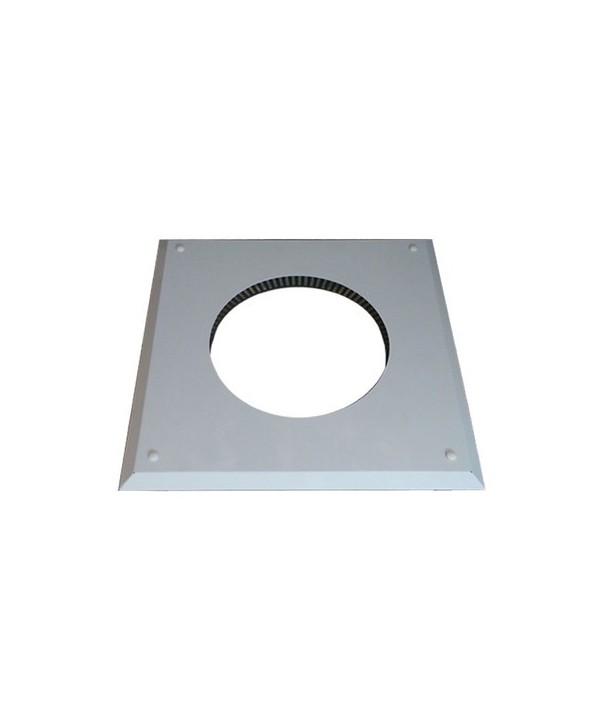

Convesa Twin Wall Flue 150mm Firestop Cover Plate White
615-150-075
New
Convesa Twin Wall Flue 150mm Firestop Cover Plate White
4 Items
- Convesa Twin Wall Flue 150mm Firestop Cover Plate White
- The Firestop Cover Plate (Powder Coated In White) Is Used To Cover An Existing Firestop Plate
- It Gives The Installation A Pleasing Finish, While Still Allowing Enough Air Into The Chamber Without Comprimising The Use Of The Firestop Plate
- It Is Attached To The Underside Of The Firestop Plate Using Magnets & Spacers. It Is Important To Use These Spacers To Allow The Correct Amount Of Air Into The Chamber
- A Firestop Plate Is Used To Allow The Chimney To Pass Between Floors, e.g. When You Need The Chimney To Go Through The Ceiling On The Ground Floor Through To The First Floor. The Steel Plate Is Designed To Provide The Appropriate Distance Between The Flue & The Adjacent Flamable Materials, According To Both Fire And Building Regulations. It Is Attached To The Underside Of The Ceiling
- If You Are Going Through A Second Ceiling Then You Should Use A Second Firestop Plate On The Floor And Again On The First Floor Ceiling
- You Should Use A Ventilated Firestop When The Installed Appliance Will Burn Solid Fuels, For Example Wood, Coal, etc.
- A Non-Ventilated Firestop Plate Can Be Used On Installations Burning Gas Or Oil
- Outer Skin; 304 Grade Stainless Steel, 0.4mm Thick
- Inner Skin; 316 Grade Stainless Steel, 0.4mm Thick
- Insulation; Compressed Rockwool, Density Of 128kg Per Cubic Metre
- All Parts Are Fully Welded
- Distance To Combustibles; 60mm
- KC Is HETAS Approved & Is CE Marked
- KC Twin Wall Insulated Chimney Parts Are Secured Together By Using A Locking Band
- Make Sure That You Keep A Distance Of 60mm From The Outside Of The Flue To Any Combustible Material (Wood, Plaster Board)
